Different Tank Volumes
for Every Propellant

Arkadia’s Tanks

Arkadia space is developing and comercializing a family of piston tanks compatible with long term storability of HTP. These tanks are designed to minimize peroxide decomposition, guarantee positive expulsion (with >99% expulsion rate) and qualified to comply with SpaceX RPUG and AIAA requirements. The tanks can be used both in blowdown and pressure regulated applications with HTP and other propellants (to be evaluated on a one by one basis).

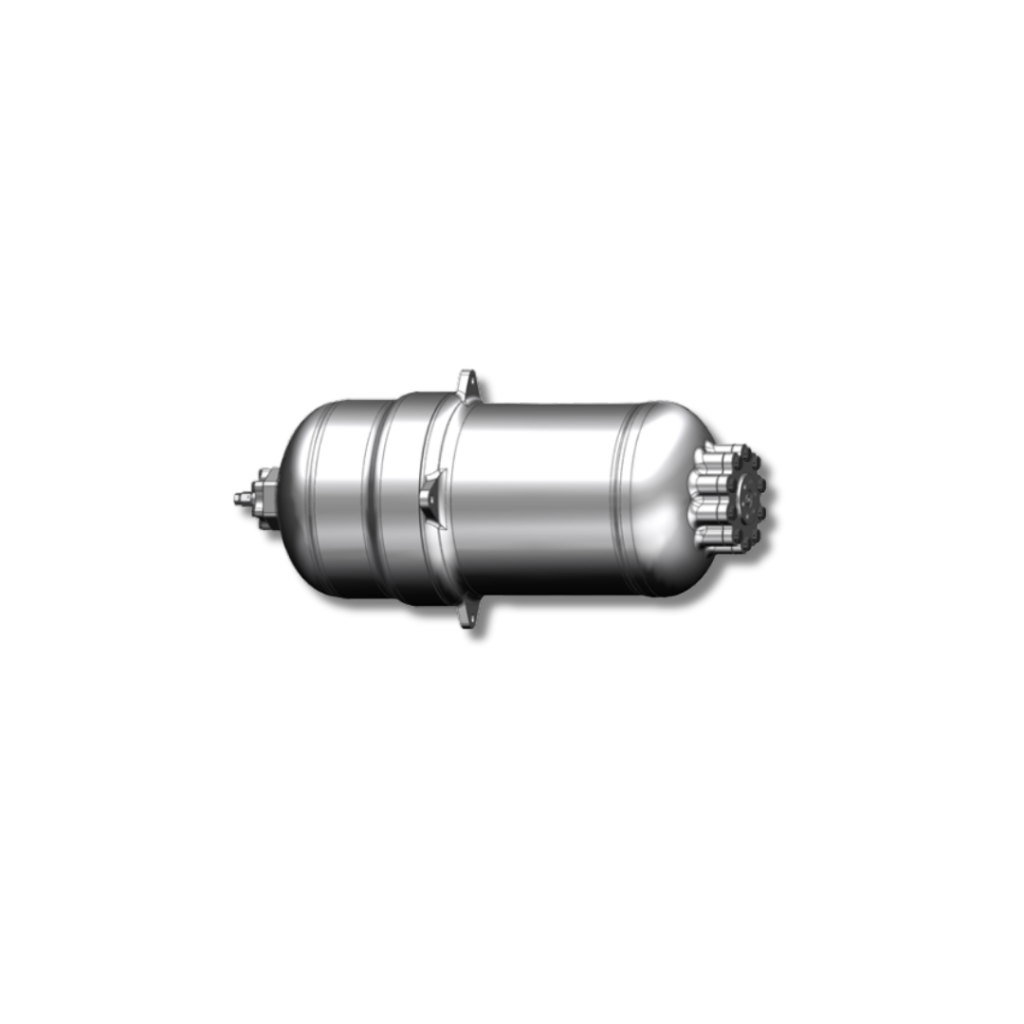

1.5L Piston tank

READY TO SELL!

Tank total volume

2.2 L

Liquid | gas volume

1.54 L | 0.66 L

MEOP

30 bar

Tank dry mass

1.63 kg

Material

Aluminium 6082 T6

Blowdown ratio

4:1

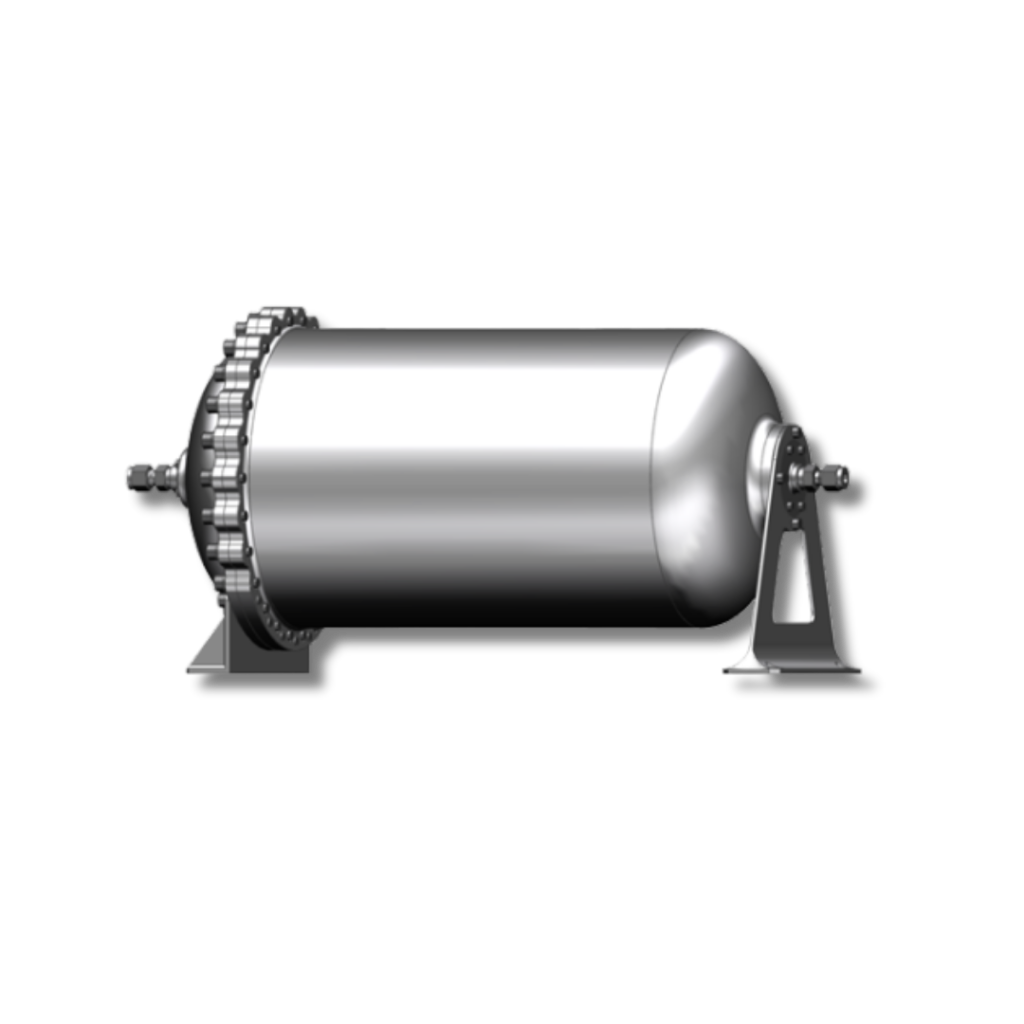

5L Piston tank

READY TO SELL!

Tank total volume

7.0 L

Liquid | gas volume

5 L | 2 L

MEOP

30 bar

Tank dry mass

3.75 kg

Material

Aluminium 6082 T6

Blowdown ratio

4:1 baseline Configurable

Larger Tank Capacities

SOON!

Our next-generation tank family, ranging from 50L to 100L, is currently under development.

Contact us

Combine our tanks with Arkadia thrusters

Build a complete, mission-ready propulsion system
